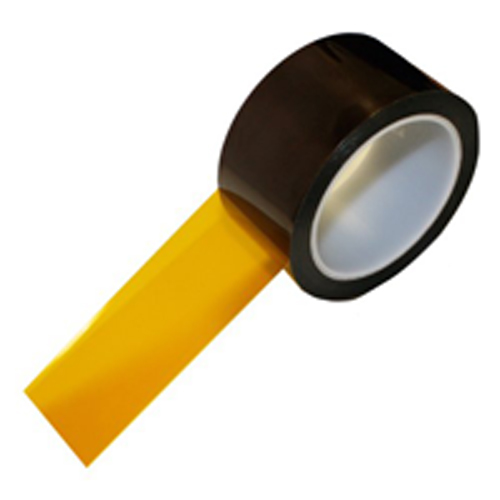

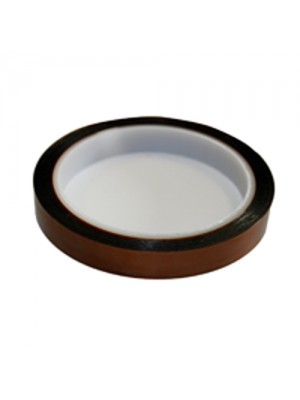

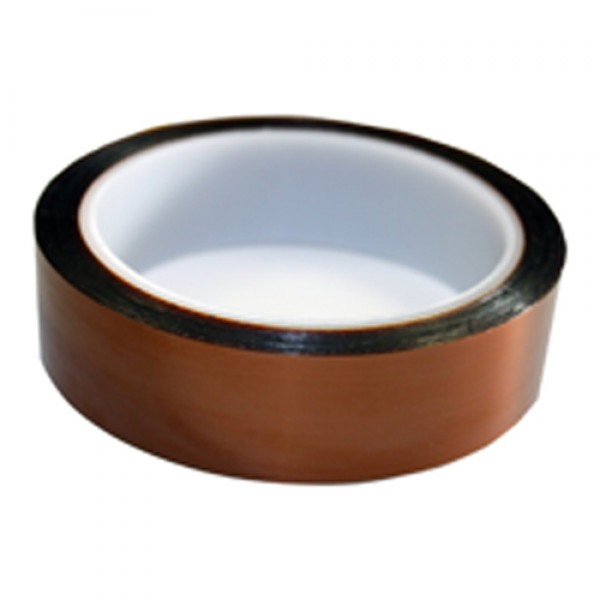

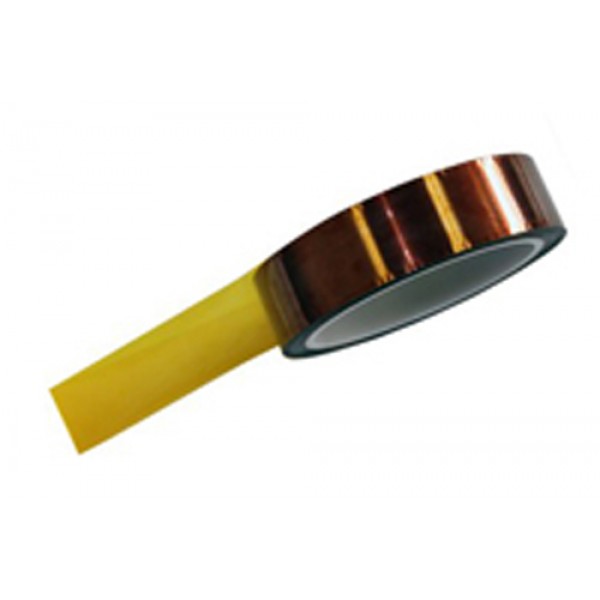

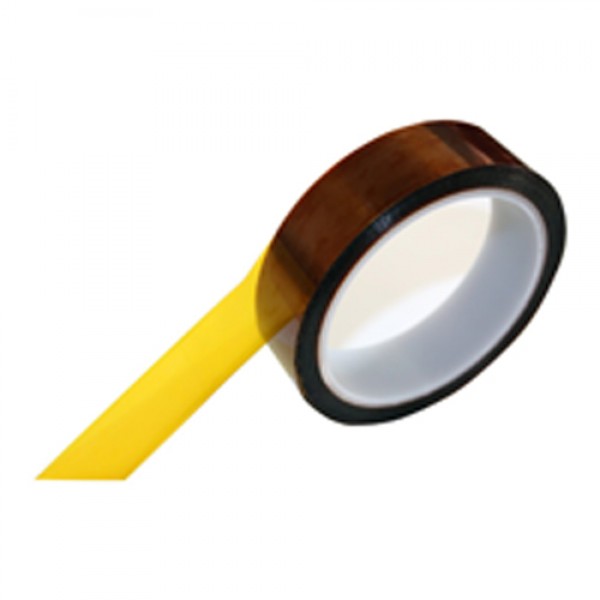

2 Mil Polyimide Tape KPT2-25

Product Code: KPT2-25

Product Size: 25mm x 33m

Description:


2 Mil Polyimide Tape is developed by Polyimide film with silicone adhesive. Polyimide films shows excellent electrical insulation properties, high temperature resistant, and excellent solvent resistant. Polyimide tape combines excellent physical, electrical, and mechanical properties, and has been used in applications at temperatures as low as -269°C (-452°F) and as high as 260°C (500°F)

Applications: 3D Printing, Aerospace Assembly, Automotive Facilities, Electronic Assembly, Fiber Optics Manufacturing and Solar Panels.


Technical Data Sheet:


 Color
 Amber
 Adhesion type
 Silicone
 Backing material
 Polyimide film
 Film Thickness
 2 Mil
 ASTM D  3652
 Adhesive Thickness
 1.5 Mil
 Total Thickness
 3.5 Mil
 Adhesion to steel
 30oz/inch
 ASTM D  3330
 Tensile Strength
 50(1bs/inch)
 ASTM D  3759
 Elongation
 >50%
 ASTM D  3759
 Dielectric Strength
 11,000 volts
 UL-94 Flammability Rating
 V-0
 Insulation Resistance
 1,000,000 mega ohms
 Electrolytic Corrosion Factor
 1
 Insulation Class,Centigrade
 180℃
 Temperature Resistance
 260℃(500°F)
 Tape size range
 W(1~500)mm x L(33) meters


Standard Size:



 KPT2-03
 2 Mil Polyimide tape  - 3mm x 33m
 KPT2-05
 2 Mil Polyimide tape  - 5mm x 33m
 KPT2-06
 2 Mil Polyimide tape  - 6mm x 33m
 KPT2-08
 2 Mil Polyimide tape  - 8mm x 33m
 KPT2-10
 2 Mil Polyimide tape  - 10mm x 33m
 KPT2-12
 2 Mil Polyimide tape  - 12mm x 33m
 KPT2-15
 2 Mil Polyimide tape  - 15mm x 33m
 KPT2-19
 2 Mil Polyimide tape  - 19mm x 33m
 KPT2-20
 2 Mil Polyimide tape  - 20mm x 33m
 KPT2-25
 2 Mil Polyimide tape  - 25mm x 33m
 KPT2-32
 2 Mil Polyimide tape  - 32mm x 33m
 KPT2-38
 2 Mil Polyimide tape  - 38mm x 33m
 KPT2-44
 2 Mil Polyimide tape  - 44mm x 33m
 KPT2-50
 2 Mil Polyimide tape  - 50mm x 33m
 KPT2-64
 2 Mil Polyimide tape  - 64mm x 33m
 KPT2-76
 2 Mil Polyimide tape  - 76mm x 33m
 KPT2-100
 2 Mil Polyimide tape  - 100mm x 33m
 KPT2-127
 2 Mil Polyimide tape  - 127mm x 33m
 KPT2-140
 2 Mil Polyimide tape  - 140mm x 33m
 KPT2-152
 2 Mil Polyimide tape  - 152mm x 33m
 KPT2-178
 2 Mil Polyimide tape  - 178mm x 33m
 KPT2-204
 2 Mil Polyimide tape  - 204mm x 33m
