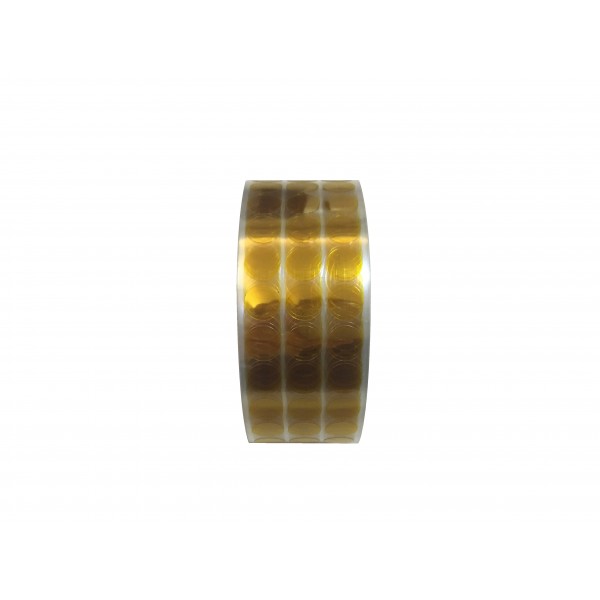

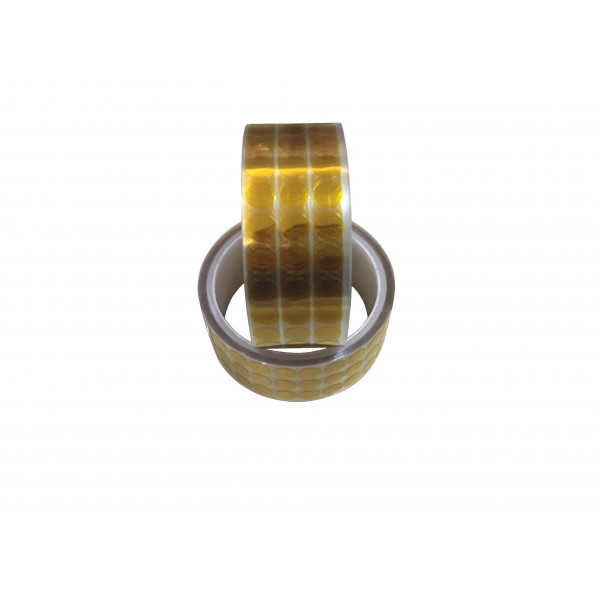

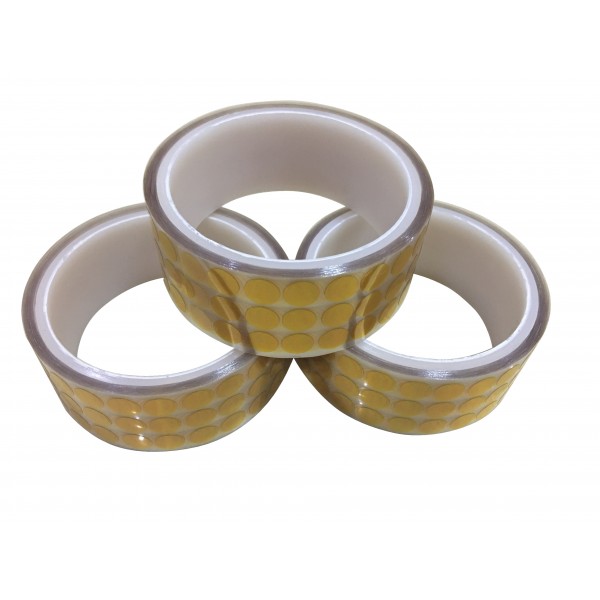

Discs & Dots KOT-12

Product Code: KOT-12

Product Size: Dia.12mm, 3pcs per row,2000 Dots /roll

Description:

High Temperature Masking Discs are made of 1 mil thick Polyimide film with 1.5 mil thick silicone adhesive. These masking discs are reliable and durable with a unique combination of electrical, thermal, chemical and mechanical properties that withstand extreme temperatures, vibration, and other demanding environments. They are packaged on a 3" core.

Applications: Aerospace Assembly, Anodizing, Electronic Assembly, Powder Coating, Semiconductor, and Solar Industries.


Technical Data Sheet:


 Product
 High Temperature Masking Discs
 Backing material
 Polyimide film
 Film Thickness
 1 Mil
 ASTM D  3652
 Adhesive Thickness
 1.5 Mil
 Total Thickness
 2.5 Mil
 Adhesion to Steel (N/25mm)
 5.5
 Tensile Strength at Break (N/cm)
 58
 Elongation
 60%
 ASTM D  3759
 Dielectric Strength
 4,000 volts
 UL-94 Flammability Rating
 V-0
 Insulation Class,Centigrade
 180℃
 Temperature Resistance
 260℃(500°F)


Standard Size:


 KOT-05
 Dia.5mm, 4pcs per row,2000 Dots/roll
 KOT-06
 Dia.6mm, 4pcs per row,2000 Dots/roll
 KOT-07
 Dia.7mm, 4pcs per row,2000 Dots/roll
 KOT-08
 Dia.8mm, 3pcs per row,2000 Dots/roll
 KOT-09
 Dia.9mm, 3pcs per row,2000 Dots/roll
 KOT-10
 Dia.10mm, 3pcs per row,2000 Dots/roll
 KOT-12
 Dia.12mm, 2pcs per row,2000 Dots/roll
 KOT-19
 Dia.19mm, 2pcs per row,1000 Dots/roll
 KOT-25
 Dia.25mm, 2pcs per row,500 Dots/roll
 KOT-32
 Dia.32mm, 1pcs per row,500 Dots/roll
 KOT-50
 Dia.50mm, 1pcs per row,250 Dots/roll
