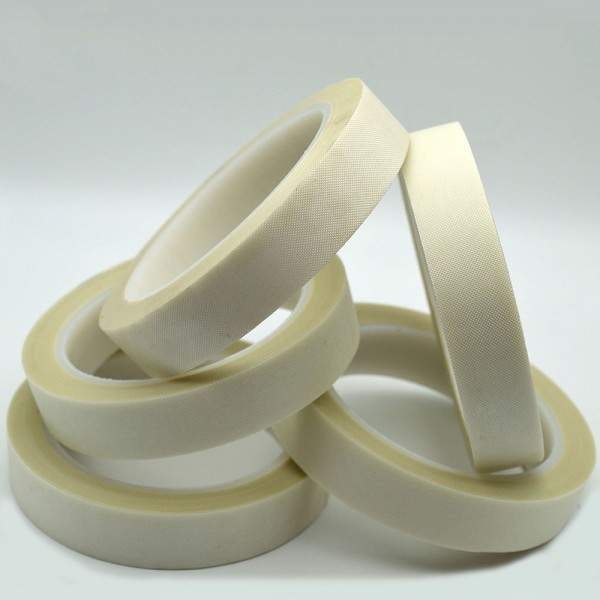

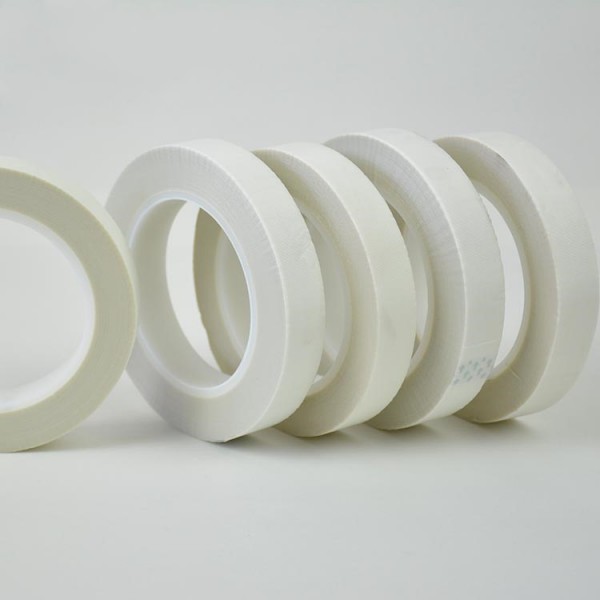

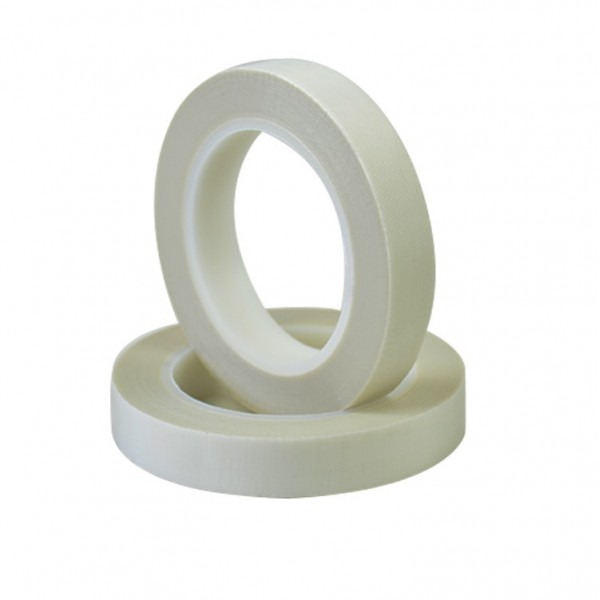

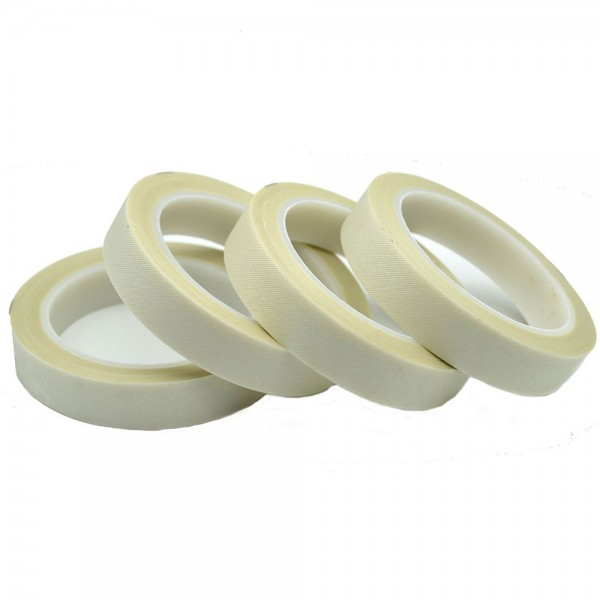

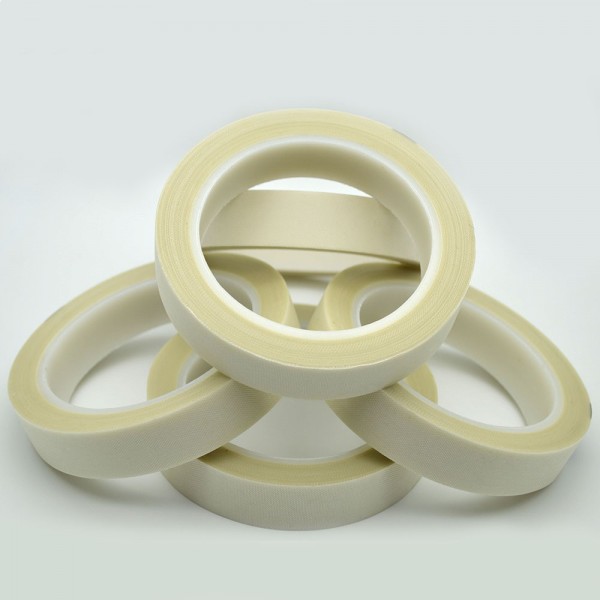

This tape is with glass cloth as the basic carrier, and coated with silicone adhesive,and the total thickness is 0.18mm，It features excellent temperature resistance(-50℃～260℃),good adhesion and tearing resistance etc. It’s mostly applied for the high strength insulation protection, like the insulation binding(H grade) , various kinds of hot coating masking, and the insulation wrapping of the Li batteries etc. It’s excellent features can replace quite a lot of imported glass cloth tapes, like 3M-69#P212TESA4618 etc. It’s widely used in a lot of high temperature insulation protection places, like air conditional and other electrial appliance, automobiles, digital products etc.
Applications: air conditional and other electrial appliance, automobiles, digital products etc.
|
Part Number |
GCT Series |
Flame resistance |
Excellent |
|
Color |
White |
Tensile Strength (N/25mm） |
400 |
|
Thickness |
0.13mm |
Elongation |
5% |
|
Material Type |
Glass Cloth |
Heat Resistance |
200C°C(400°F) Peak Temp. |
|
Adhesive Type |
Silicone |
Chemical Resistance |
Good |
|
Standards |
ASTM D3652, D3330 |
Voltage resistance (KV） |
≥2 |
| GCT-10 |
Glass Cloth Tape - 10mm x 33m/66m |
| GCT-15 |
Glass Cloth Tape - 15mm x 33m/66m |
| GCT-18 | Glass Cloth Tape - 18mm x 33m/66m |
|
GCT-20 |
Glass Cloth Tape - 20mm x 33m/66m |
|
GCT-25 |
Glass Cloth Tape - 25mm x 33m/66m |
|
GCT-30 |
Glass Cloth Tape - 30mm x 33m/66m |
|
GCT-35 |
Glass Cloth Tape - 35mm x 33m/66m |
| GCT-40 | Glass Cloth Tape - 40mm x 33m/66m |
|
GCT-45 |
Glass Cloth Tape - 45mm x 33m/66m |
|
GCT-50 |
Glass Cloth Tape - 50mm x 33m/66m |
|
GCT-100 |
Glass Cloth Tape - 100mm x 33m/66m |
|
GCT-200 |
Glass Cloth Tape - 200mm x 33m/66m |
|
GCT-300 |
Glass Cloth Tape - 300mm x 33m/66m |
|
GCT-400 |
Glass Cloth Tape - 400mm x 33m/66m |
|
GCT-500 |
Glass Cloth Tape - 500mm x 33m/66m |
